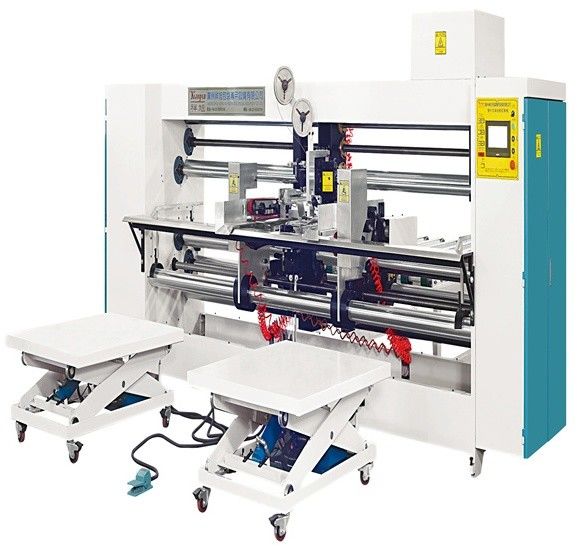

Semi-Auto Stitcher With 500nails/Min High Speed And Precise Stitching

I. Core Performance Parameters

Servo-driven high-speed semi-automatic stitching system capable of up to 500 nails per minute, featuring quick-change mechanisms for effortless switching between multiple formats.

The ergonomically designed human-machine interface allows even novice operators to become proficient within 30 minutes of training.

Dual-mode stitching functionality: Intelligently alternates between single and double-layer cardboard without manual adjustment.

II. Intelligent Control System

Integrated production counter with automatic bundling unit.

Computerized parameter control system featuring:

Dynamic stitching speed adjustment (200-500 nails/minute)

Real-time production monitoring and fault diagnostics via 7-inch industrial touchscreen

III. Precision Positioning System

Infrared photoelectric sensing platform with automated lifting mechanism for precise positioning.

Adaptive feeding height compensation system with manual fine-tuning baffle.

IV. Structural Safety Design

Precision-engineered bearing systems utilizing FAG (Germany) and NSK (Japan) components.

Dual safety protection mechanisms with automatic overload shutdown functionality.

V. Product Compatibility

Staple compatibility encompasses standard single staples, reinforced double staples, and specially profiled staples.

Standard adaptation supports 3- to 5-layer corrugated cartons, while custom solutions extend to 7-layer heavy-duty cartons (including topless configurations).

MAIN SPARE PARTS:

Japanese YASKAWA ELECTRIC servo motor .

Japanese OMRON PLC programmed.

Japanese YASKAWA ELECTRIC servo motor Control.

Japanese NSK Bearing. TR bearing with set.

Electric switch & contactor: Taiwan brand. Almost Electric: Germany SIEMENS and France Schneider.

Stitching head use Japanese molding design. CNC precision treated.

Blade and bottom mould used Germany Tungsten steel. And Japanese SKD11 alloy steel puncher pin that anti-friction and rot.

All transmission gears are hardened and ground, HRC 58-60°.

Germany Air-tec pneumatic cylinder adopted.

America BANNER/ Taiwan Fotek / Taiwan Wunlun Color Touch Screen.

Company Introduction:

Wepack Machinery Equipment Co., Ltd. specializes in the design, R&D, production, sales, and service of high-end printing and packaging machinery for corrugated cartons, serving as an integrated solutions provider for the intelligent corrugated equipment industry.

Since its inception, the company has remained committed to equipment innovation and development, continuously incorporating customer and market feedback. Utilizing advanced machinery, precision engineering, and systematic management, Wepack has secured multiple patents in China. Supported by reliable products and responsive service, the company has earned the trust of clients across Southeast Asia, South America, Australia, the Middle East, and Western Europe, exporting to over 30 countries and regions worldwide.

The product portfolio includes high-end intelligent solutions such as:

• Fully Auto Folder Gluer Stitcher Machines

• Vacuum Transfer Fully Automatic Flexo Printer Slotter Die-cutter Auto Stackers

• Fully Automatic Flexo Printer Slotter Die-cutters with Inline Folder Gluer & Counter Ejectors

• Fully Automatic Packaging Machines

These offerings cover complete intelligent corrugated equipment systems and packaging machinery spare parts. All models feature fully servo-driven digital control systems, with select equipment supporting open-windows operating systems and ERP interfaces. Designed for high automation and user-friendly operation, Wepack machines enable low energy consumption and high productivity—helping customers reduce costs, enhance quality, and achieve lean manufacturing. The company operates its own factory with a production facility exceeding 10,000 square meters.

Factory Introduction:

Our production line is a carton back-end process production line which integrate the advanced technology and excellent professionals,The engineers have deep professional knowledge an optimized technical background who are responsible for the all production lines design, commissioning and maintenance. They can optimize the production line according to customer requirement and the actual situation to improve production efficiency and quality.The production line is also equipped with other professionals, such as quality control personnel and equipment maintenance personnel, etc. They are responsible for different responsibilities and jointly ensure the normal operation of the production line and the quality of the cartons.

Packing and Shipping:

Product Packaging:

• The corrugated printer slotter will be packed in a sturdy cardboard box.
• The box will be secured with adhesive tape to prevent any damage during transit.
• The product will be wrapped in protective bubble wrap or foam to provide extra cushioning.

Shipping:

• The product will be shipped via a reputable courier service.
• The shipping cost will be calculated based on the destination and weight of the package.
• Customers will receive a tracking number to monitor the delivery status of their package.
• Delivery times may vary depending on the location of the customer.
